The PROTECH^™ Motor Programming system allows field programming of ECM, Eon, Endura Pro, X-13, SelecTech, ENSITE, ENSITE Air, and ENSITE+ motors from blank (non-programmed) motors. Using this system, over 200 different programmed motors and modules can be created on an as-needed basis. Only about a dozen blank motor and module part numbers need to be stocked, thereby saving valuable inventory dollars while increasing service levels to your customers.

The system consists of the PROTECH Motor Programmer software and certain interface cables and other hardware peripherals described below. The software is easily installed on the user's computer. The computer is connected to the motor through the interface box and cables provided in the kit. When it is time to program a motor, the software connects to the internet and retrieves the latest version of the motor program and writes it to the motor's memory. Then a label with the new programmed motor part number is printed for attachment to the motor.

System Requirements:

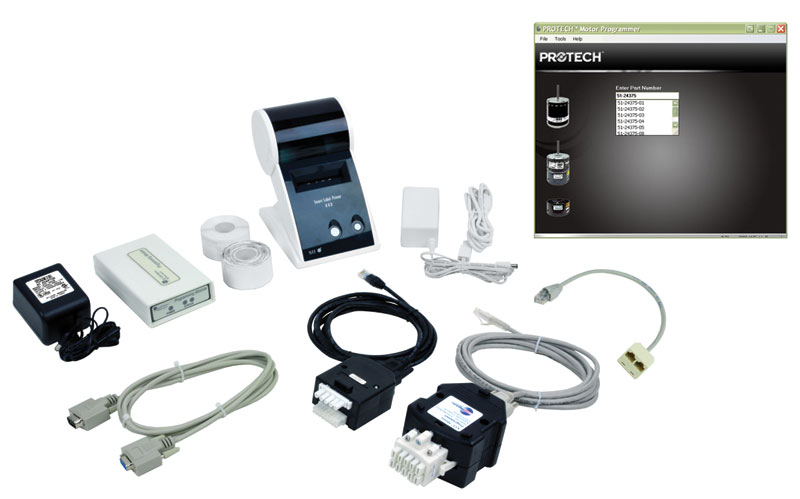

You must purchase Field Programming Kit PD510011 for ECM 2.3, Eon, Endura Pro, X-13, ENSITE, ENSITE Air, and ENSITE+ motors - this kit contains the following items:

• USB port interface box - connects the computer to the motor being programmed
• Cables for ECM/Eon and Endura Pro/X-13 motor connectors
• Power supply cable
• Thermal printer - no ink cartridges required
• Two rolls of spare labels - additional labels available as part numbers
• 864040 for Seiko 440 Printer
• PD864043 for Brother Printer
• Sold separately: 8794707SWG01 wiring adapter for programming ENSITE and ENSITE+ motors

You must purchase Field Programming Kit K33C for SelecTech motors - this kit contains the following items:

• USB port interface box - connects the computer to the motor being programmed
• Power supply cable

You must have:

• Microsoft Windows - vesion 7, 8, or 10
• Microsoft .Net Framework^® version 4.8 - can be downloaded from Microsoft at this link.
• An active connection to the internet.

The PROTECH^™ ECM/X-13 Motor Programming System and Field Programming Kit consists of software and other products that are the property of Rheem Manufacturing Company (“Rheem”), Regal-Beloit Electric Motors, Inc. (or its affiliate) (“Regal-Beloit”), Nidec Motor Corporation and other third party owners. In order to use these products, you must agree to the software and hardware licenses and other terms made applicable to the products by Rheem, Regal Beloit, and the other owners (the “Terms”). By installing or using the products, you agree to any and all Terms.
